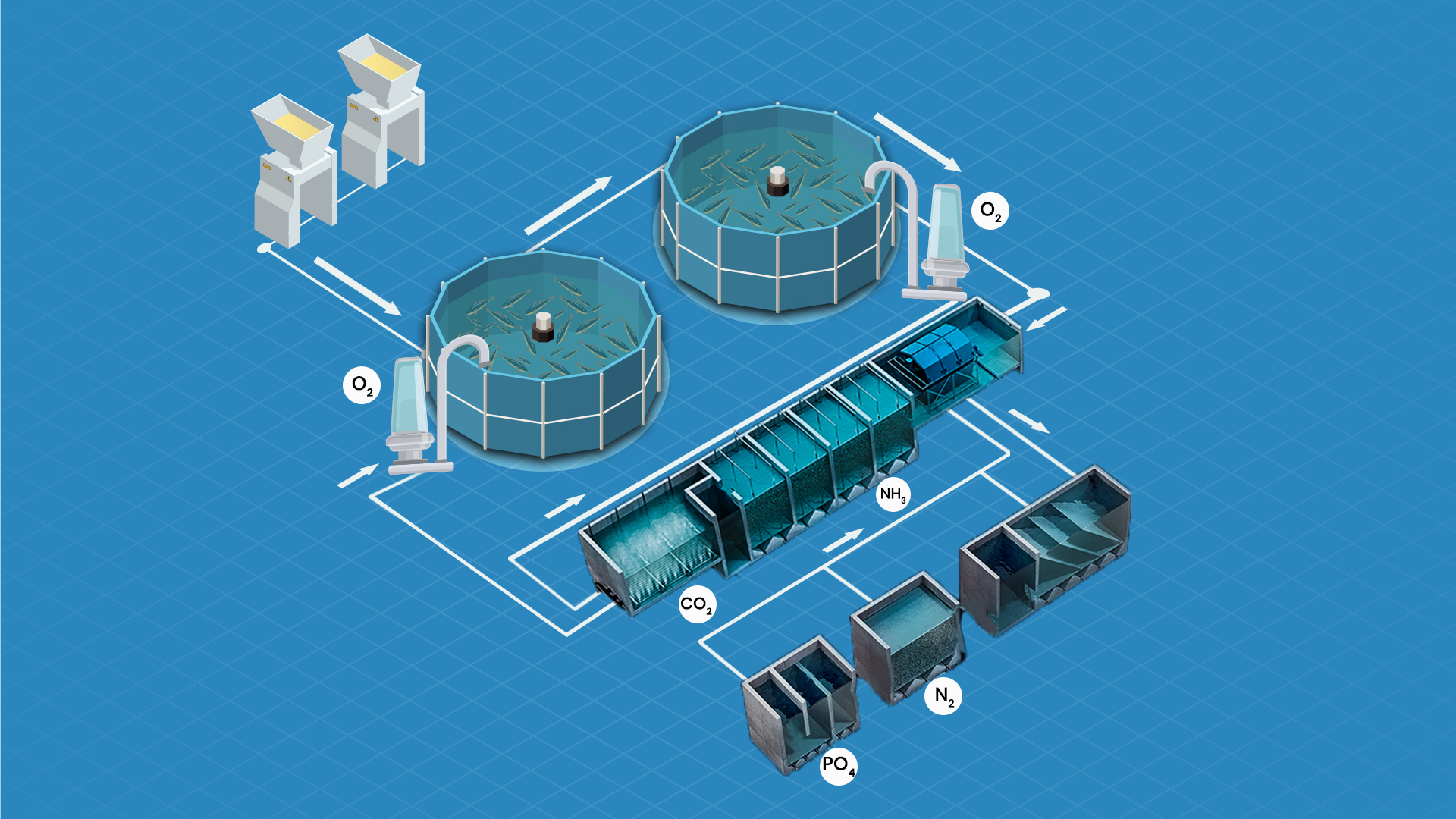

Recirculating Aquaculture System

Home Recirculating Aquaculture System (RAS)

This makes it possible to grow healthy fish at a predictable and faster rate improving production and profitability. The technology is environmentally friendly because more than 99% of the water is recycled whereby the use of new water is significantly reduced and the effluent can be treated very easily.

Udaya Aqua group delivers proven RAS technology

services-05

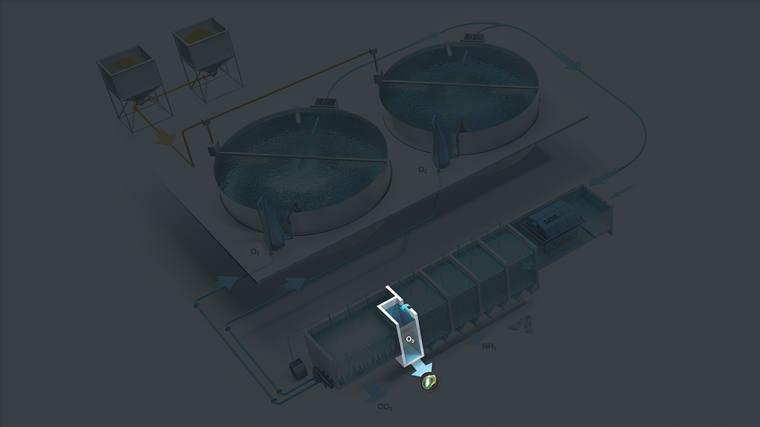

Feeding system

The feeding system is designed for gentle transportation of pellets to the fish tanks. The dosing is automatically calculated and feed is distributed evenly across the tanks to ensure optimal fish schooling and growth.

services-05

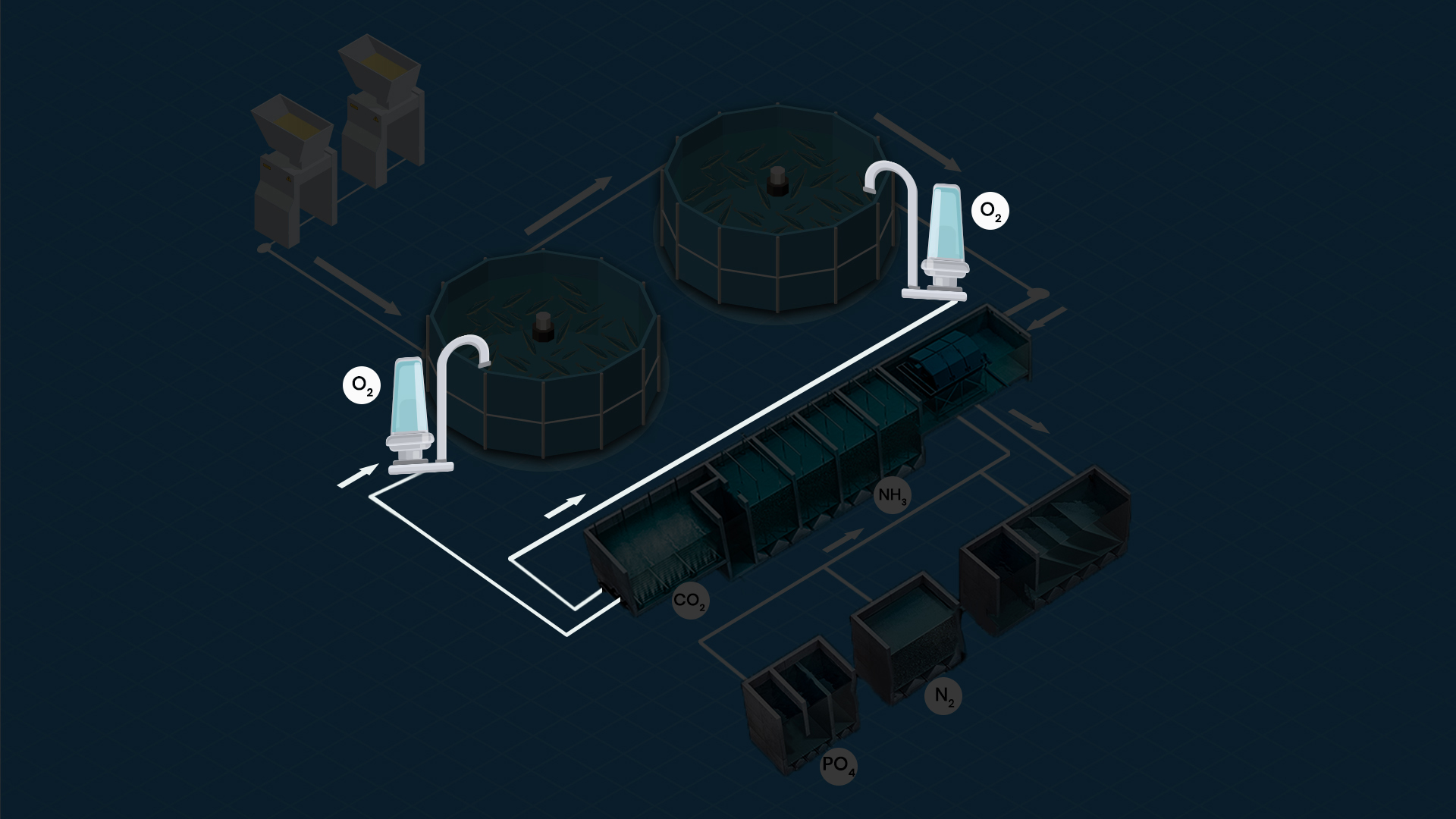

Oxygenation

Oxygen cones are used to dissolve oxygen into the water by low pressure to ensure optimal conditions for fish growth and welfare.

services-05

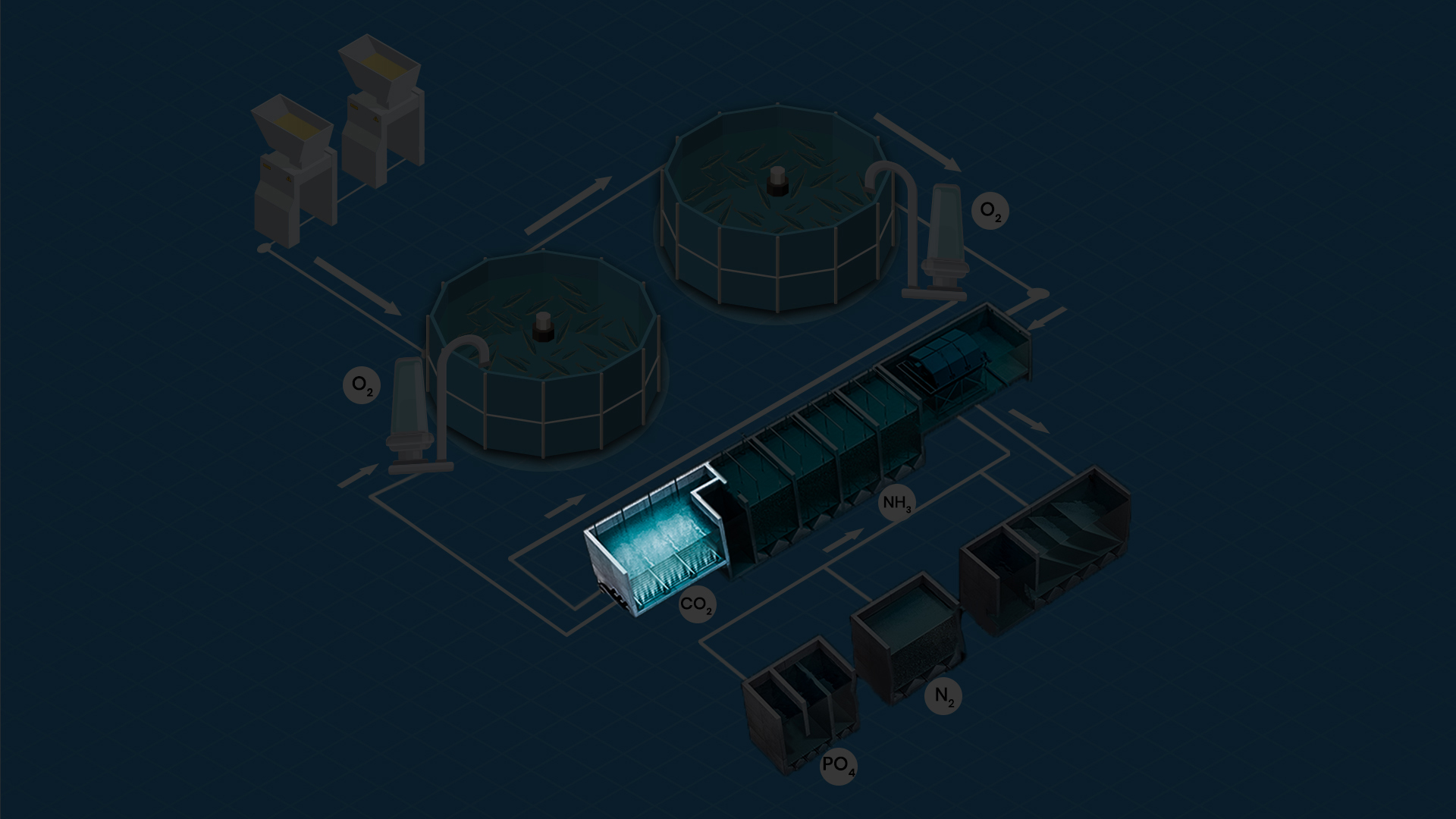

CO2 degassing

The degasser is designed for efficient removal of CO2 and free nitrogen. The process requires low maintenance efforts and is self-cleaning with no dead zones.

services-05

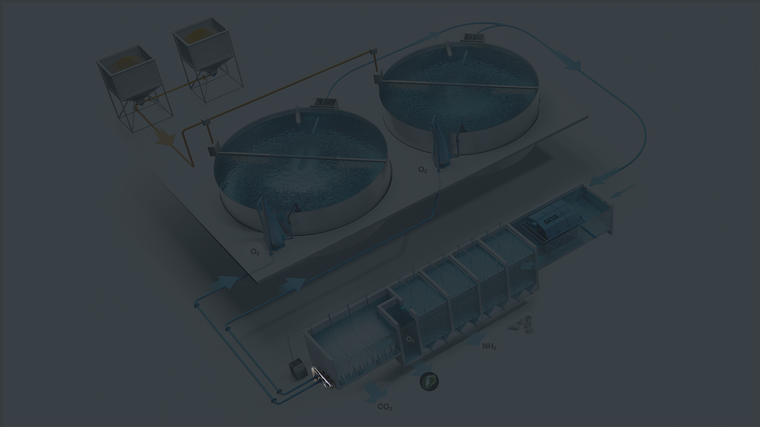

Main pumps

Water is pumped only one time as clean water leaves the treatment system. The recycling rate of the total system volume is 1-2 times per hour.

services-05

Fish tanks & Fish handling

Optimal water velocity in tanks secures a sound environment and excersises fish for better fish performance and meat quality. Gentle fish handling technology ensures easy movement of fish between tanks and for the delivery.

services-05

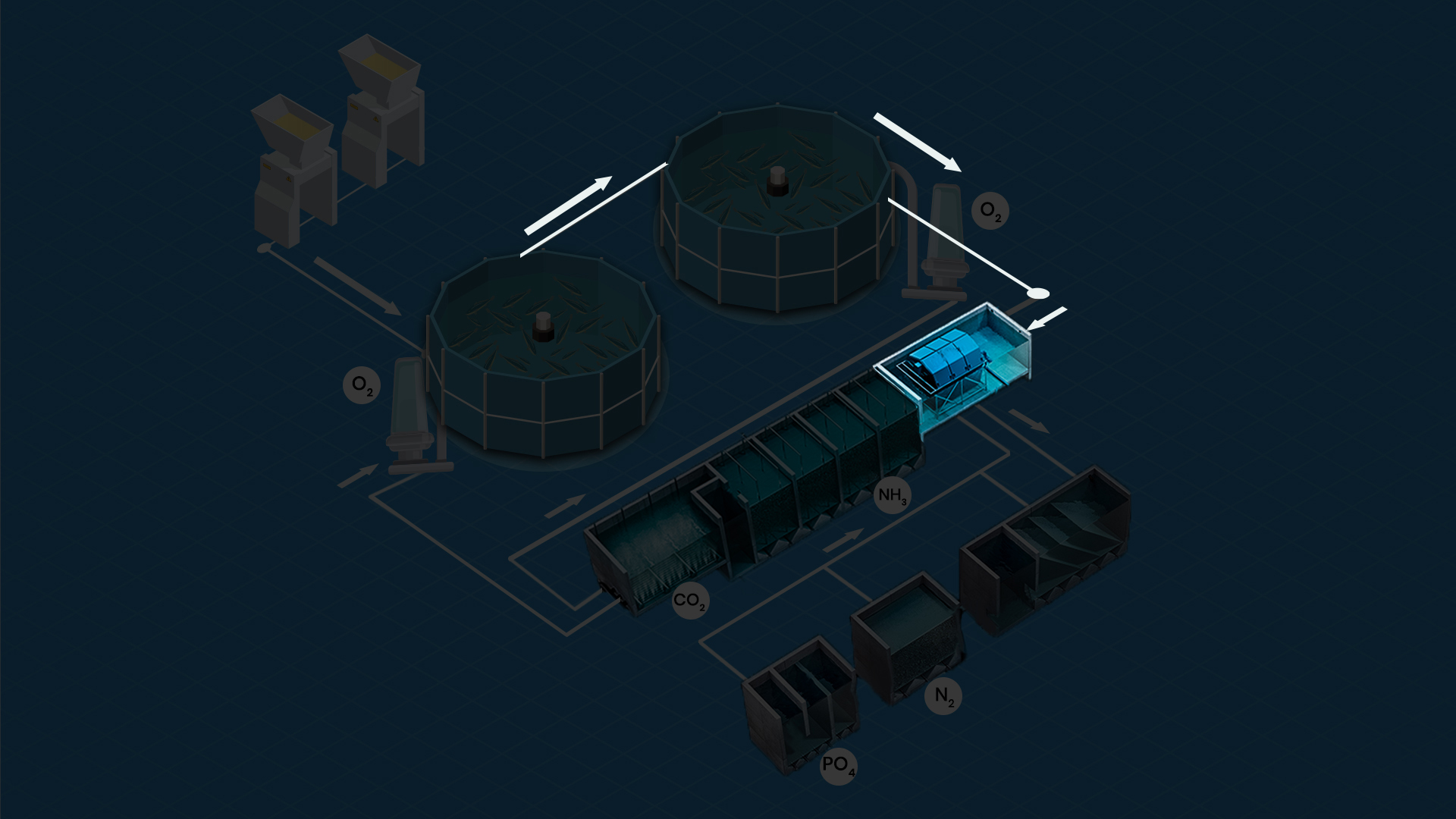

Mechanical filters

Efficient removal of particles larger than 40-60 microns in the drum filter is crucial for water quality optimization and optimal biofilter performance.

services-05

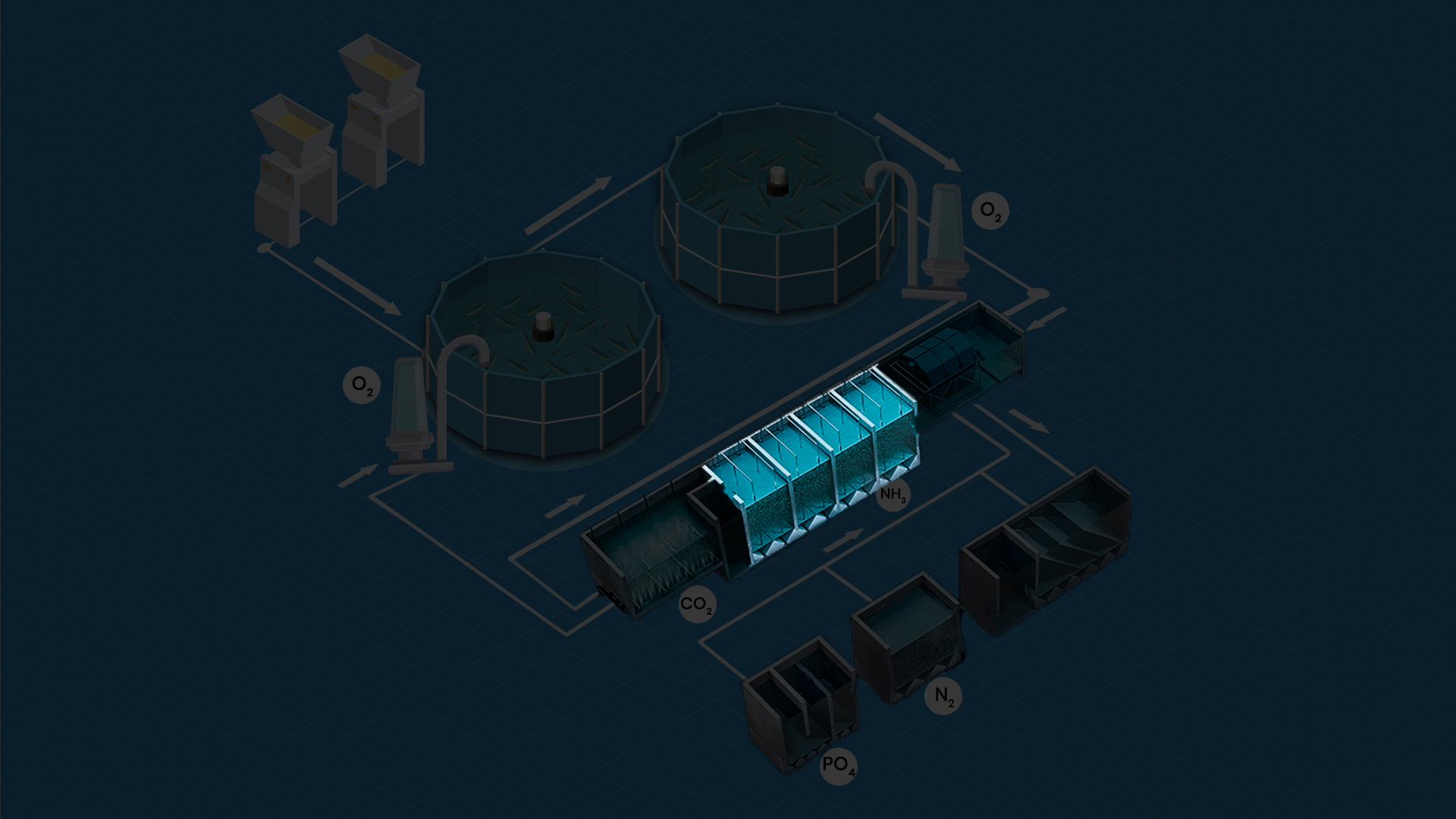

Biofilter

A fixed bed biofilter turns metabolic waste into harmless nitrate and works also as a microparticle filter holding back particles < 40-60 micron. Fixed bed technology is energy efficient and offers high biological stability. Semi-Automatic Cleaning (SAC) system and the Top Water Suction (TWS) solution makes cleaning easy and reduces sludge production.

services-05

Ozone chamber

Ozone cleans the water by oxidation and enhances flocculation of microparticles. The microorganisms are neutralized and off-flavour levels are controlled.

Related products

  • Land Based Recirculating Aquaculture System

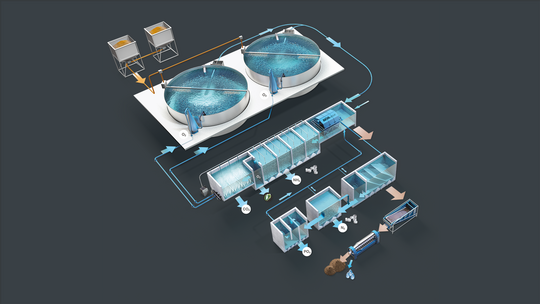

    Zero water Concept (ZWC)

    The ZWC is a technology which can be connected to a Recirculating Aquaculture System (RAS). The ZWC reduces the water consumption even further than the core RAS.

  • Udaya Aqua group landbasert fiskekar

    Fish tank solutions

    Udaya Aqua group delivers complete indoor tank solutions based on an integrated design of inlet- and outlet systems, efficient mortality

  • Udaya Aqua group landbasert foringssystem

    Feeding systems

    Reliable feeding system with low operating costs.

  • Udaya Aqua group land based fish handling

    Fish handling

    Efficient and gentle fish handling is key in any land-based fish farming operation.

  • Udaya Aqua group land based control system

    Control systems

    Our fish farm control system is designed for optimal industrial control of the processes in your facility.

Udaya Aqua group land based service and support

Service & support

Let Udaya Aqua group take care of the technology while you focus on keeping your fish in good shape. We offer global service and support on all our products and solutions to match any need.

Service and support are becoming an integrated part of our business to enhance the performance of Land Based fish farming.

Advanced aquaculture needs professional maintenance, training and documentation.


Land based

We are an Established Research and Development Technological firm established on 07-Nov-2019 working to create “Aqua corridor” between two biggest dams of Telangana “Nizamsagar dam” and “Sriram Sagar dam”.
